Product Details:
Payment & Shipping Terms:
|
Material: | Stainless Steel Rack | Fuction: | Baking |
---|---|---|---|
Color: | Black | Size: | Customized Size |
Delievery Time: | 7-25 | MOQ: | 50 |
Port: | Shanghai | Design: | Modern |
Shape: | Rectangle | ||
Highlight: | stainless steel tray rack trolley,stainless steel baking rack |
MODEL NO
|
MODEL DESCRIPTION
|
DIMENSION
|
SPECIFICATION
|
HR-BT-01
|

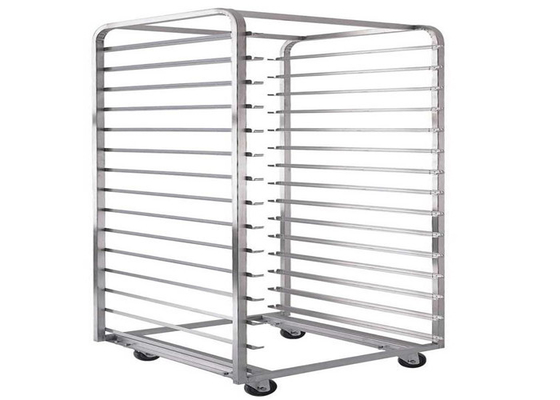

#201 Stainless Steel Baking Trolley, 11 Layers, can load 22 baking Pans.
For bread baking system usage. Matching the pan 400*600mm |
Trolley Dimension:
height: 1750mm length:770mm width: 670mm caster height:100mm Bulkhead metal strip length: 810mm |
Trolley metal using #201 stainless steel, the bulkhead metal 71*1.3mm, Bulkhead metal strip thickness is 1.3mm. Using 3” High temperature resistant Galvanized axial hole casters, 4 caster without brake. The trolley body structure connected by Aluminum Tee Joint hardware. The upper connection by 30*30mm square tube, the below connection by 30*60mm square tube.
The Trolley using Knock-down structure and need assemble on site. |
HR-BT-02
|

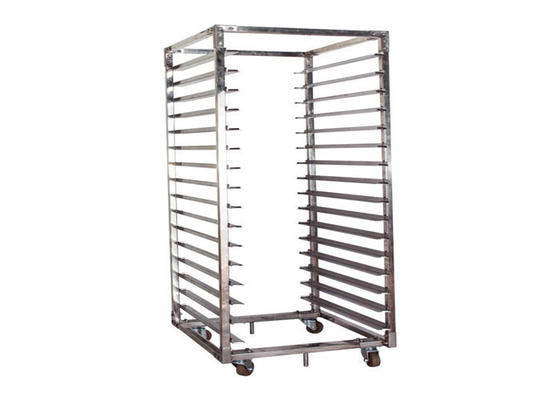

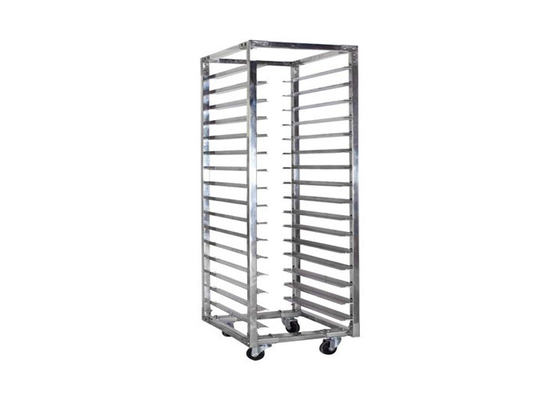

#201 Stainless Steel Baking Trolley, 16 Layers, can load 16 baking Pans.
For bread baking system usage. Matching the pan 400*600mm |
Trolley Dimension:
height: 1750mm length:610mm width: 470mm caster height:100mm Bulkhead metal strip length: 610mm |
Trolley metal using #201 stainless steel, the bulkhead metal 71*1.3mm, Bulkhead metal strip thickness is 1.3mm. Using 3” High temperature resistant Galvanized axial hole TPR material casters, 4 caster without brake. The trolley body structure connected by Aluminum Tee Joint hardware. The upper connection by 30*30mm square tube, the below connection by 30*60mm square tube.
The Trolley using Knock-down structure and need assemble on site. |
HR-BT-03
|
#304 Stainless Steel Baking Trolley, 11 Layers, can load 22 baking Pans.
For bread baking system usage. Matching the pan 400*600mm |
Trolley Dimension:
height: 1750mm length:770mm width: 670mm caster height:100mm Bulkhead metal strip length: 810mm |
Trolley metal using #304 stainless steel, the bulkhead metal 71*1.3mm, Bulkhead metal strip thickness is 1.3mm. Using 3” High temperature resistant Galvanized axial hole casters, 4 caster without brake. The trolley body structure connected by Aluminum Tee Joint hardware. The upper connection by 30*30mm square tube, the below connection by 30*60mm square tube.
The Trolley using Knock-down structure and need assemble on site. |
HR-BT-04
|
#304 Stainless Steel Baking Trolley, 16 Layers, can load 16 baking Pans.
For bread baking system usage. Matching the pan 400*600mm |
Trolley Dimension:
height: 1750mm length:610mm width: 470mm caster height:100mm Bulkhead metal strip length: 610mm |
Trolley metal using #304 stainless steel, the bulkhead metal 71*1.3mm, Bulkhead metal strip thickness is 1.3mm. Using 3” High temperature resistant Galvanized axial hole TPR material casters, 4 caster without brake. The trolley body structure connected by Aluminum Tee Joint hardware. The upper connection by 30*30mm square tube, the below connection by 30*60mm square tube.
The Trolley using Knock-down structure and need assemble on site. |
MODEL NO
|
MODEL DESCRIPTION
|
DIMENSION
|
SPECIFICATION
|
HR-DT-01
|

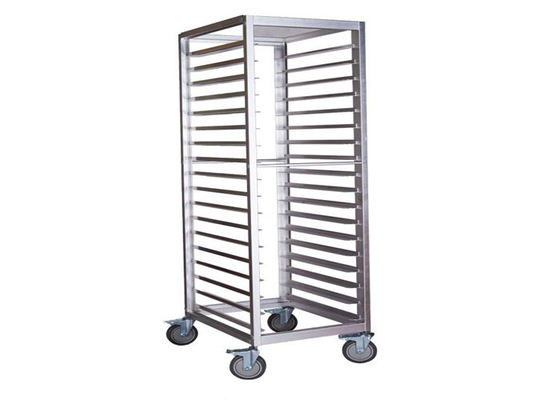

#201 Stainless Steel Drying Trolley, 16 Layers, can load 32 drying trays.
For drying system usage. |
Trolley Dimension:
height: 1750mm length:810mm width: 670mm caster height:100mm Bulkhead metal strip length: 810mm |
Trolley metal using #201 stainless steel, the bulkhead metal 20*25*1.0mm, Bulkhead metal strip thickness is 1.0mm. Using 3” black High temperature resistant Galvanized casters, 2 caster with brake and 2 without. The trolley body structure connected by Aluminum Tee Joint hardware. The upper connection by 30*30mm square tube, the below connection by 30*60mm square tube.
The Trolley using Knock-down structure and need assemble on site. |
HR-DT-02
|
#201 Stainless Steel Drying Trolley, 16 Layers, can load 32 drying trays.
For drying system usage. |
Trolley Dimension:
height: 1750mm length:1210mm width: 870mm caster height:100mm Bulkhead metal strip length: 1210mm |
Trolley metal using #201 stainless steel, the bulkhead metal 20*25*1.0mm, Bulkhead metal strip thickness is 1.0mm. Using 3” black High temperature resistant Galvanized casters, 2 caster with brake and 2 without. The trolley body structure connected by Aluminum Tee Joint hardware. The upper connection by 30*30mm square tube, the below connection by 30*60mm square tube.
The Trolley using Knock-down structure and need assemble on site. |
HR-DT-03
|
#304 Stainless Steel
Drying Trolley, 16 Layers, can load 32 drying trays. For drying system usage. |
Trolley Dimension:
height: 1750mm length:810mm width: 670mm caster height:100mm Bulkhead metal strip length: 810mm |
Trolley metal using #304 stainless steel, the bulkhead metal 20*25*1.0mm, Bulkhead metal strip thickness is 1.0mm. Using 3” black High temperature resistant Galvanized casters, 2 caster with brake and 2 without. The trolley body structure connected by Aluminum Tee Joint hardware. The upper connection by 30*30mm square tube, the below connection by 30*60mm square tube.
The Trolley using Knock-down structure and need assemble on site. |
HR-DT-04
|
#304 Stainless Steel Drying Trolley, 16 Layers, can load 32 drying trays.
For drying system usage. |
Trolley Dimension:
height: 1750mm length:1210mm width: 870mm caster height:100mm Bulkhead metal strip length: 1210mm |
Trolley metal using #304 stainless steel, the bulkhead metal 20*25*1.0mm, Bulkhead metal strip thickness is 1.0mm. Using 3” black High temperature resistant Galvanized casters, 2 caster with brake and 2 without. The trolley body structure connected by Aluminum Tee Joint hardware. The upper connection by 30*30mm square tube, the below connection by 30*60mm square tube.
The Trolley using Knock-down structure and need assemble on site. |
